Want your Cummins engine to start instantly every time, running smooth and with maximum efficiency?
Renowned for their unparalleled reliability and long-lasting durability, Cummins engines power industrial machinery, commercial trucks, marine vessels, and generators.
All this starts at the core: selecting and maintaining an appropriate starter to awaken its full potential, choosing and keeping in good repair not only prevent costly downtime but can extend engine life too!
In this article, we’ll give a comprehensive overview of starters for Cummins engine: their various types and common issues; selection tips; maintenance practices; as well as an innovative device known as a spring starter designed to make every start hassle-free and smooth.

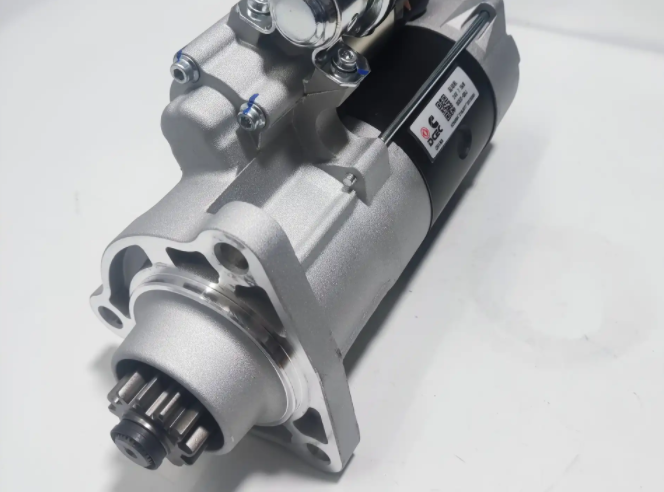

Part 1. What is a Cummins Engine Starter?
The starter, or starter motor, is the core of a diesel engine’s startup system. The primary function of a starter is to transfer external energy to mechanical power to rotate the crankshaft of an engine and turn on the fuel system, which enables smooth starting. On Cummins engines, a rightly selected starter ensures better start efficiency while directly influencing the reliability and service life of the whole engine.
Common types of Cummins engine starters include:
1. Electric Starter
The most common means of starting any type of engine is the electric starter. During this process, electrical energy from the battery powers the starter motor, transferring the force into the gears that rotate the crankshaft of an engine.
Advantages:
- Easy to operate: The engine can be started by the driver simply pressing a button or turning the key.
- Fast starting: the engine achieves speed quickly at starting.
- Relatively low maintenance: it is enough to occasionally check the condition of the battery, wiring, and contact points.
2. Spring Starter
You may be familiar with the electric starter, but the spring starter is a strong and sure backup for firing up Cummins engines under even the most formidable conditions. Energy from a pre-tensioned spring in the device is used to turn the engine and is particularly useful in low-temperature conditions, where the battery is weak or the electric starter is not operational.
Advantages:
- Serves as a backup to the electric starter, thus allowing reliable engine start-ups in extreme conditions.
- Requires little or no power from the battery, thus becoming perfect when there is not enough power supply.
- Simple structure, long maintenance cycle, and reliable performance in specific situations.

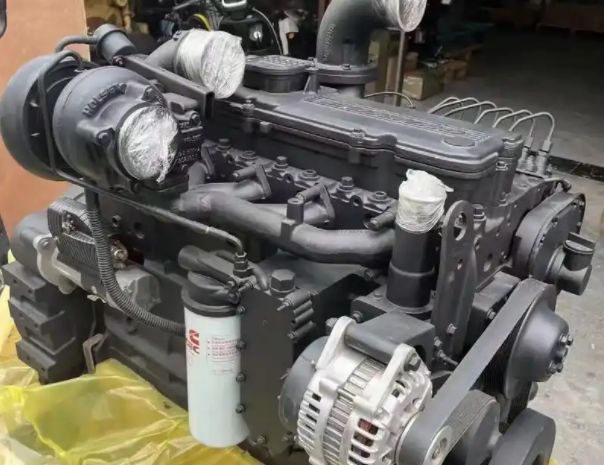

Part 2. Common Cummins Starter Problems and Symptoms
In long-term use, the starter of a Cummins engine can develop a number of problems that negatively impact the operations of the engine in its starting and functioning processes. Common starter problems and their symptoms include the following:
1. Engine Turns Over but Won’t Start
When the engine turning over but not start, look for the following situations:
- Fuel system faults, such as low fuel pump pressure or clogged injectors.
- Bad conditions of ignition systems include faults in sensors or control modules.
- Insufficient fuel supply due to abnormal oil pump conditions.
The spring starter will work as an auxiliary device in low-temperature environments or when fuel pump issues arise to provide a reliable start for an engine, which would prevent downtime.
2. Starter Motor Failure
Starter motor faults are also common, including:
- Worn or poorly contacting brushes that prevent proper current flow.
- Broken or short-circuited motor windings, reducing the starter power output.
- Overheating or internal component wear that diminishes starting performance.
3. Cable or Wiring Issues
Starter operation requires a stable power supply. Problems that can occur are:
- Poor or loose power connections.
- Corrosion to terminals or cables, which reduces resistance and hence current.
- Damaged insulation, which causes short circuits or leakage.
4. Mechanical Component Wear or Jamming
Long-term use can result in wear or jamming in the starter gears, bearings, and other mechanical parts:
- Worn or poorly meshing gears decrease efficient power transmission.
- Aged or poorly lubricated bearings increase resistance to their operation.
- Foreign particles or debris in the mechanism obstruct normal functioning.
Recommended Maintenance:
Regular inspection and maintenance of the starter are important:
- Check the battery’s charge and wiring to ensure a stable power supply.
- Clean mechanical parts and lubricate them. Replace worn-out parts without any delay.
- Periodically test starter performance to ensure reliable engine starts when needed.
Proper maintenance and timely troubleshooting would drastically reduce failures in the starters, extend life for your Cummins engine, and boost general operational reliability.
Part 3. How to Choose the Right Cummins Starter?
The selection of an appropriate starter is very important for the sure operation of a Cummins engine. While selecting the starter, one should consider the model of the engine, operating environment, and working conditions. Key factors to be considered while making this choice include:
1. Matching the Engine Model
Different models of Cummins engines, like 4BT, 6BT, or ISX, have different starting torque, current, and voltage requirements. The starter should be selected with full correspondence to the model so that no starting troubles happen, and its life is not shortened.
2. Voltage Requirements
Cummins starters come in different voltages, and they are mostly either 12V or 24V. The right voltage should be selected to match the battery system of your vehicle or equipment. Mismatched voltage will not only affect the starting performance but also possibly damage the electrical system.
3. Starting Torque and Power
The displacement and compression ratio of the engine determine the magnitude of starting torque and power needed. Large engines with large displacement or higher compression ratios require starters that can provide high torque. The load on the engine must therefore be carefully selected to assure satisfactory starts under all conditions.
4. Durability and Brand
For long-term reliability, OEM starters or high-quality, well-tested aftermarket alternatives are recommended since these will guarantee durability, reduce maintenance costs, and minimize the risk of unexpected downtime.
5. Spring Starter Option
The spring starter can be an auxiliary means in low-temperature conditions when there is not enough power in the battery. By using the mechanical energy stored in the starter, a spring starter can reliably turn the engine on where the battery cannot provide enough power for smooth engine operation under extreme conditions.
These are some of the key factors to consider when buying a Cummins starter. Choosing the correct Cummins starter means assured engine start-up under all working conditions, negating losses due to enforced downtime and even prolonging the service life of the engine and starter.
Part 4. Installation and Maintenance Guide of Starter for Cummins Engine
Installation and maintenance of the starter are very important to ensure the reliability of Cummins engines and to extend the service life of the starter. Below, the detailed installation, daily maintenance, and spring starter care instructions are given.
1. Installation Steps
Disconnect Power: Switch off the engine power before starting any work and disconnect the battery to avoid short circuits or accidental start-ups.
Remove the Old Starter: Loosen the mounting bolts and disconnect the cables. Carefully pull out the old starter, and then take the time to inspect the mounting area for dirt or damage.
Installation of New Starter: Install a starter type compatible with your model of engine. Ensure that the starter gear properly engages the flywheel for correct operation.
Secure and Connect Wiring: Mount bolts to prescribed torque and then make cable connections while ensuring that all terminals are snug and not loose. A no-load test shall be conducted after installation to check for normal operating conditions.
2. Daily Maintenance
Electricity Checks: Check regularly for cables, terminals, and battery conditions. Clean the contact points to prevent oxidation, resulting in poor connectivity.
Care of Mechanical Components: Check gears, bearings, and other moving parts for wear. Apply lubrication or replace damaged components to maintain smooth operation.
Operating Practices: Avoid long or repeated starts to guard against overheating or overloading the motor, since either condition can reduce starter life.
3. Spring Starter Maintenance
Spring Inspection: This involves regular checks being performed, to ensure that there is adequate mechanical energy stored inside the spring, to allow the startup of the engine.
Protection Measures: Keep the spring starter away from dampness or corroding environments by covering it up, if necessary. Protective covers ensure reliable operation if the need arises and your spring starter is called upon later on.
Summary
The starter is important for ensuring that Cummins engines always work with reliability. The proper selection of a starter to suit your Cummins engine, installing it appropriately, and performing routine maintenance can lessen the chances of failures effectively so that the engine is ready at any time.
For starting up in low-temperature conditions or under some other special working conditions, a spring starter, such as Cqstart Spring Starter can act as an auxiliary device. The quality and maintenance of starters are important responsibilities for every user of a Cummins engine.
